Space Frame Structure Installation Services

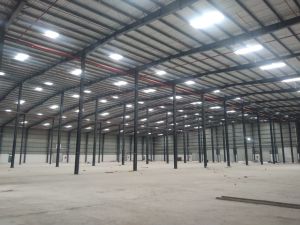

image 1
image 1 image 2


SCOPE-Scope of the work covered with this specification is to provide all workmanship and material for the design,fabrication, packaging, transportation and erection of the steel space frame with pre-determined area, geometry and features described as per architectural drawings.The scope of the work described above comprises of the followings;Engineering design of space frame, design calculations and determination of the support reactions, preparation of shop and erection drawings.Manufacturing, surface finishes, packaging and transportation of the goods to erection site.

Assembly and erection of the space frame system under the supervision of Uskon’s qualified technical supervisor.

Manufacturing commences upon client’s approval for the followings;
Space frames are higly hyperstatic systems. Design calculations shall be made by means of computers. Software used for the design shall execute the analysis by using Matrix – Displacement ( Stiffness ) Method. Connections on the joints shall be defined so as not to transfer bending moments due to transmission of the loads by pin connected connections with bolts. Loads on the structure shall be transferred via the nodes. The design analysis may include the following loading criteria according to the project and contract conditions;

A. Dead loads ( space frame, purlins, cladding )
B. Snow load
C. Service loads ( Lighting, A/C ducts, cleaning equipment, catwalks, suspended ceiling, concentrated loads, e.t.c. )
D. Live load
E. Wind load
F. Seismic load
G. Temperature variation

Design calculations shall be prepared in accordance with current design rules of the DIN, EN, AISC, BS and SNIP or equivalent internationally accepted standards. Design submittals consist of load cases, loading combinations, member forces, support reactions, node deflections and assigned member types.                                         n

Bolt Quality

Yield Stress

Tensile Stress

Elongation After Fracture

Space frame bolt  8.8

640 N/mm2

800 N/mm2


 Space frame bolt 10.9

900 N/mm2

1000 N/mm2


 Purlin system bolt  6.8

480 N/mm2

600 N/mm2
